Couch and Equipment Rack

#1

Postby gullfo » Thu, 2021-Jul-22, 13:41

a couple more dynamic components which should prove useful for layouts and rendering.

https://3dwarehouse.sketchup.com/model/ ... ouchSimple
no offense Stuart :-) my couch is much nicer than your couch :-)

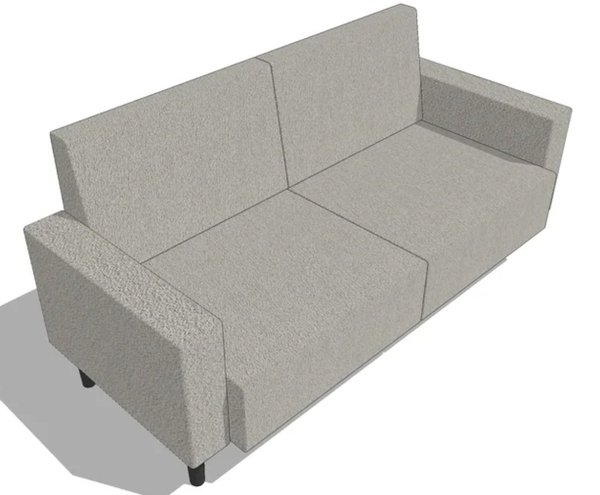

the couch has several parameters you can adjust to create several variants as well as using it as sections in more complex arrangements.

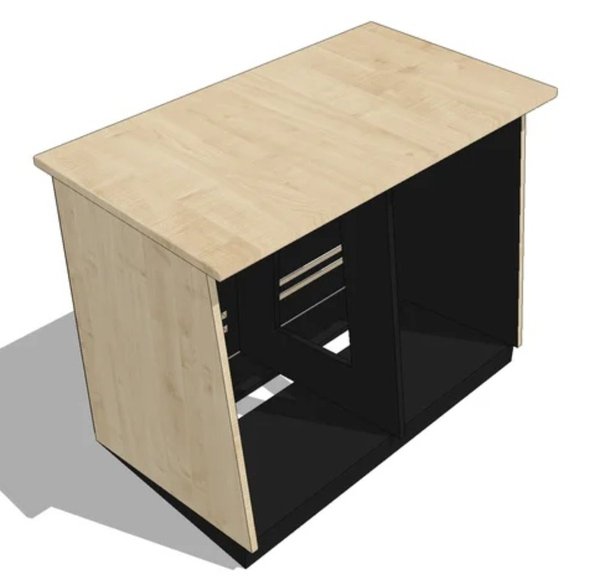

and a fixed height equipment rack (basically the std 19" bay but it is adjustable, lumber depth is fixed, and this is not a plan for construction, just a mock up). the top can be adjusted as well to create a producer table on back of rack (e.g. making it deeper so it overhangs in the back).
large_thumbnail (1).jpg

https://3dwarehouse.sketchup.com/model/ ... nt19inRack

as always, my copyrights, no support or warranties. cheers!


lostandfound
Active Member
Posts: 38
Joined: Thu, 2020-Jan-02, 10:10
Location: ITALY- Bergamo
Contact:
Contact lostandfound

Couch and Equipment Rack

#2

Postby lostandfound » Wed, 2021-Jul-28, 02:32

Thanks Glenn, very helpful :thu:
